MOKE 2XS  Brakes

Having 14" wheels, the Moke needed large disc brakes to apply the necessary torque.

Mini ones were deemed too small, but a Honda Accord setup works beautifully.

As the steering and pedals are on the left, with the booster on the right, a cross bar between two pedal boxes is needed.
(just as is used on later model LHD Minis.)

On the rear, calipers were needed that would operate as a handbrake. (Mini ones won't.)
The solution was to use VW Jetta rear discs and calipers. (Not shown here.)

The booster is genuine Mini.

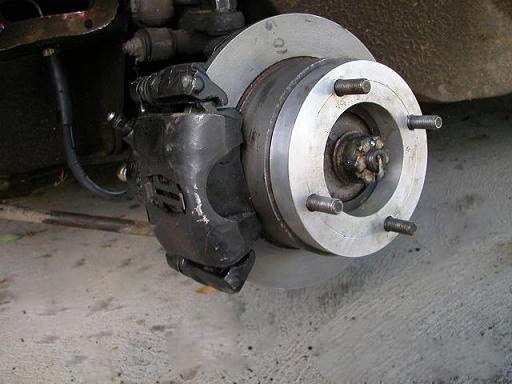

Honda Disc Brake conversion

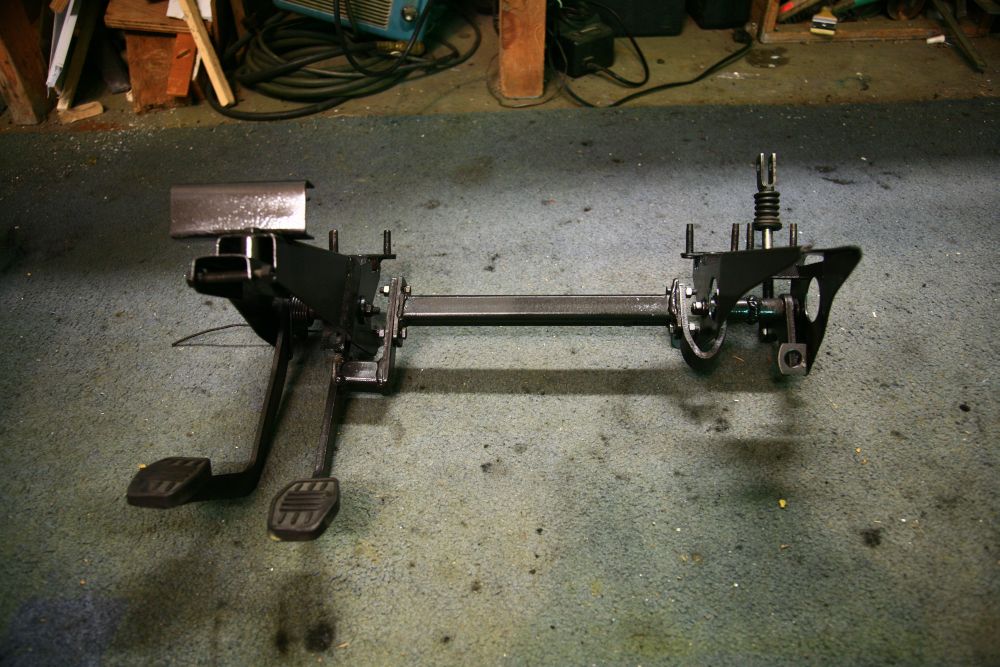

2 pedal baxes and bar which allows for booster on right of LHD car

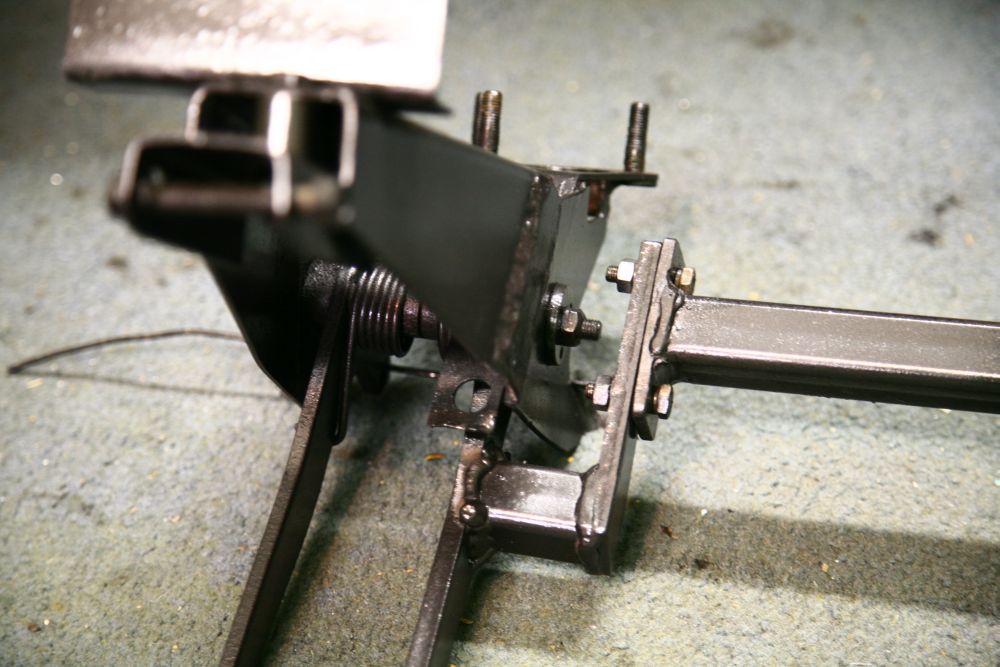

Driver pedal box

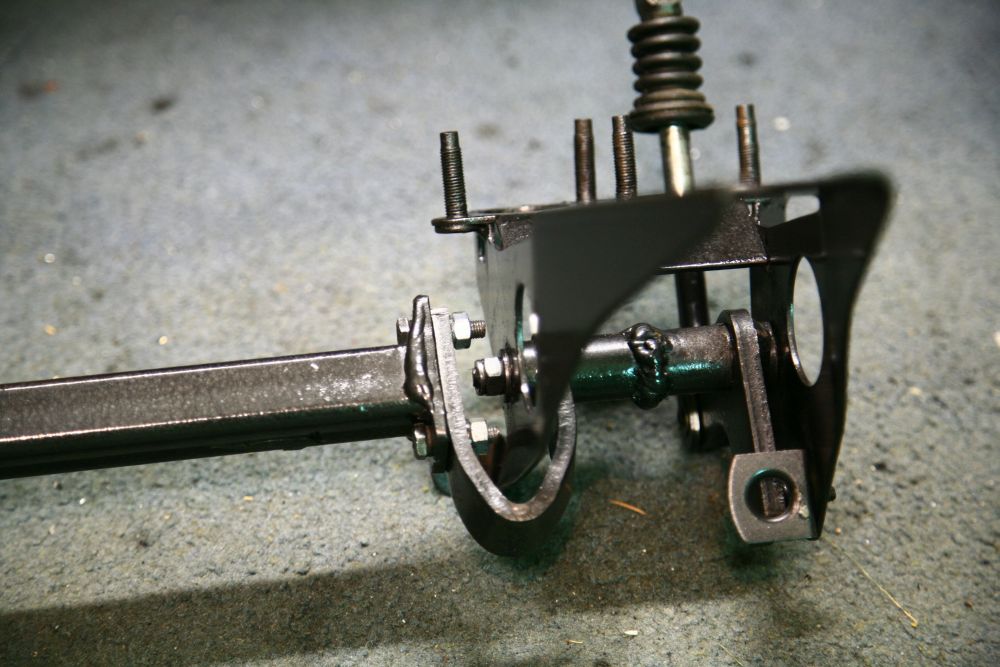

'Slave' pedal box

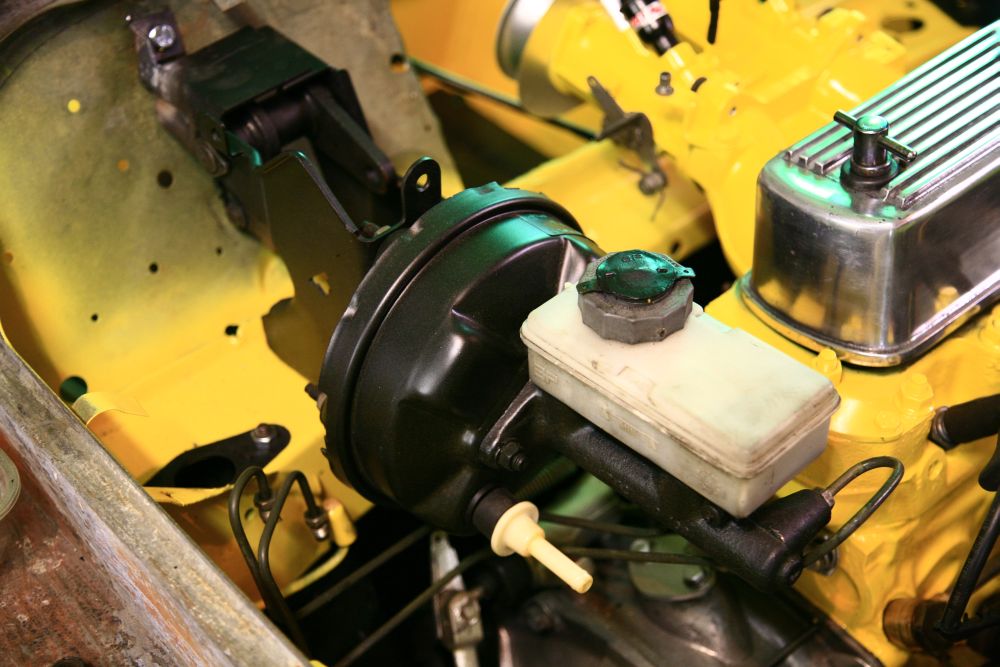

Here is the booster , on the right side of engine bay

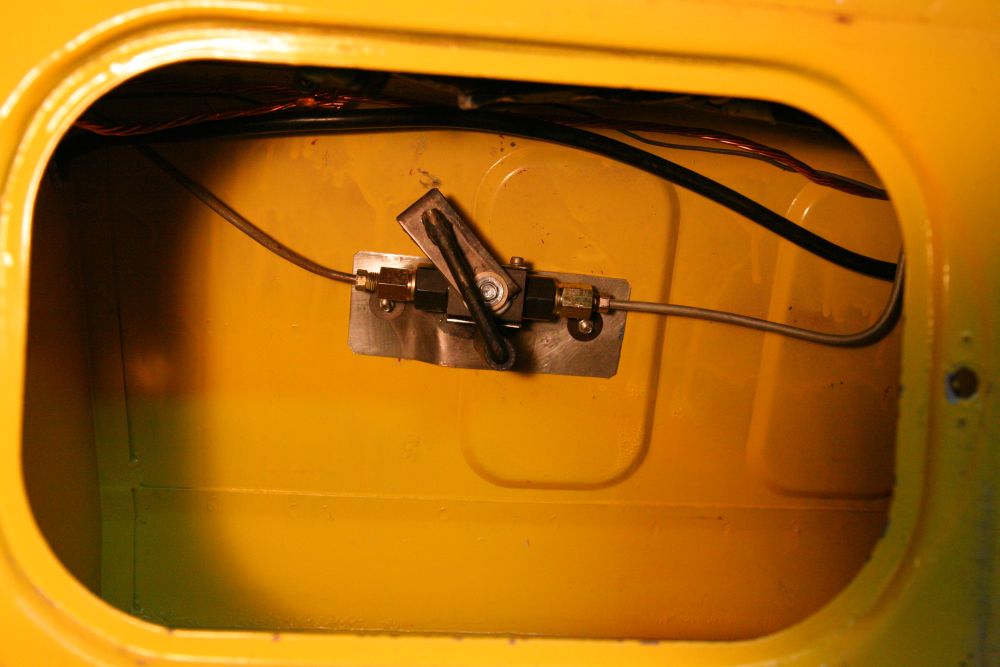

Hydraulic 'lock' mounted on rear brake line...

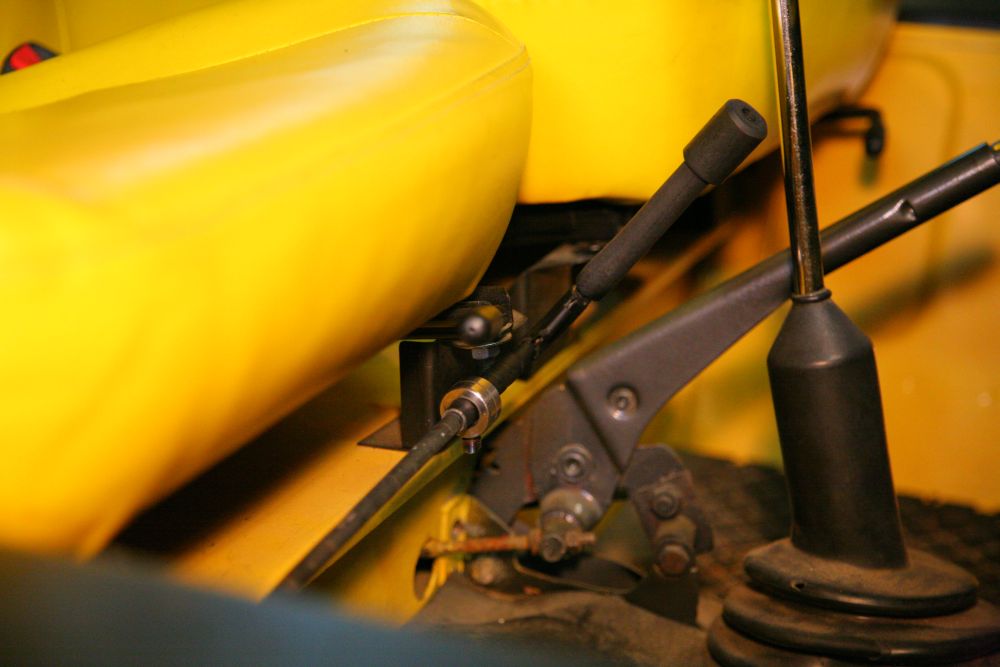

...the actuator also acts as handbrake - your choice!
